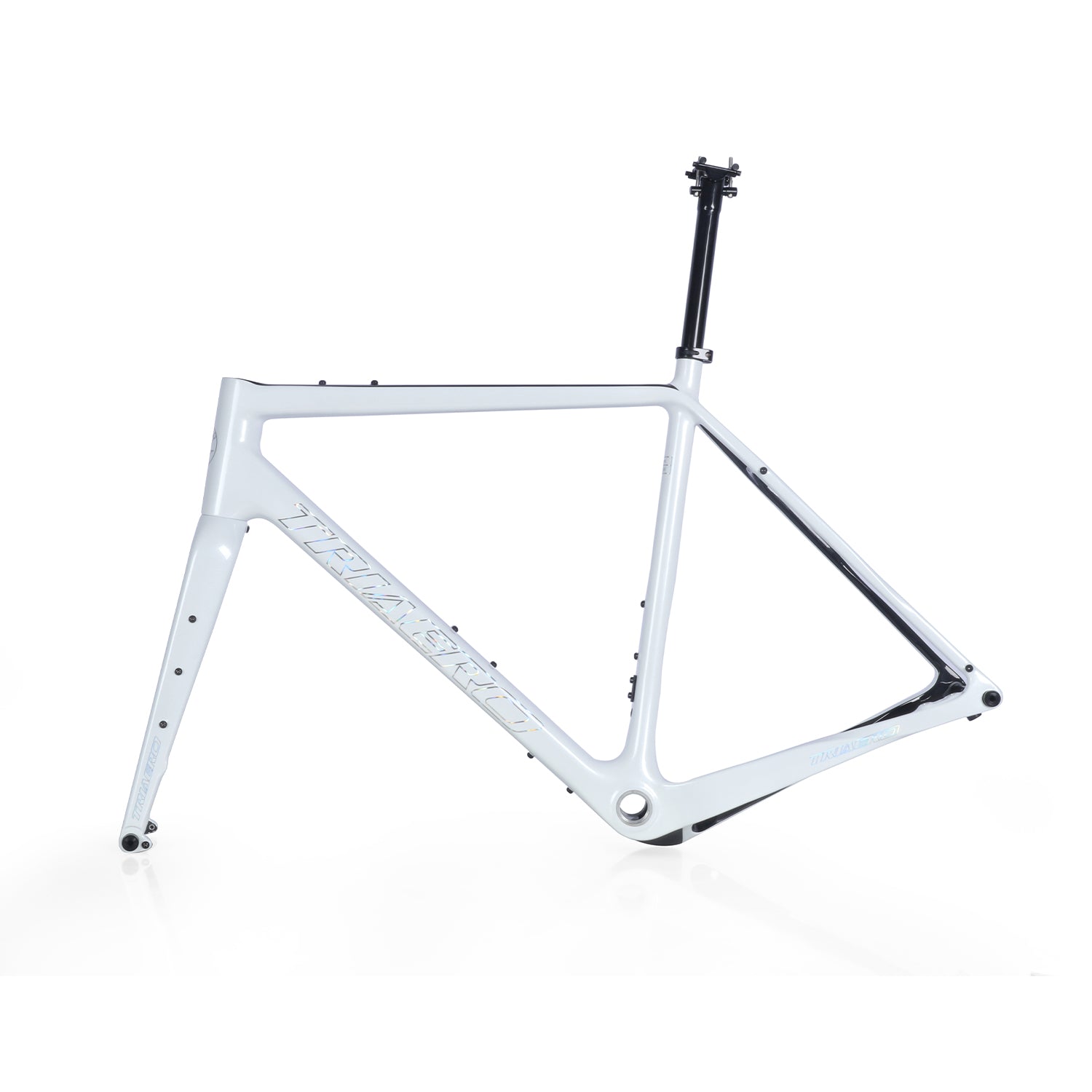

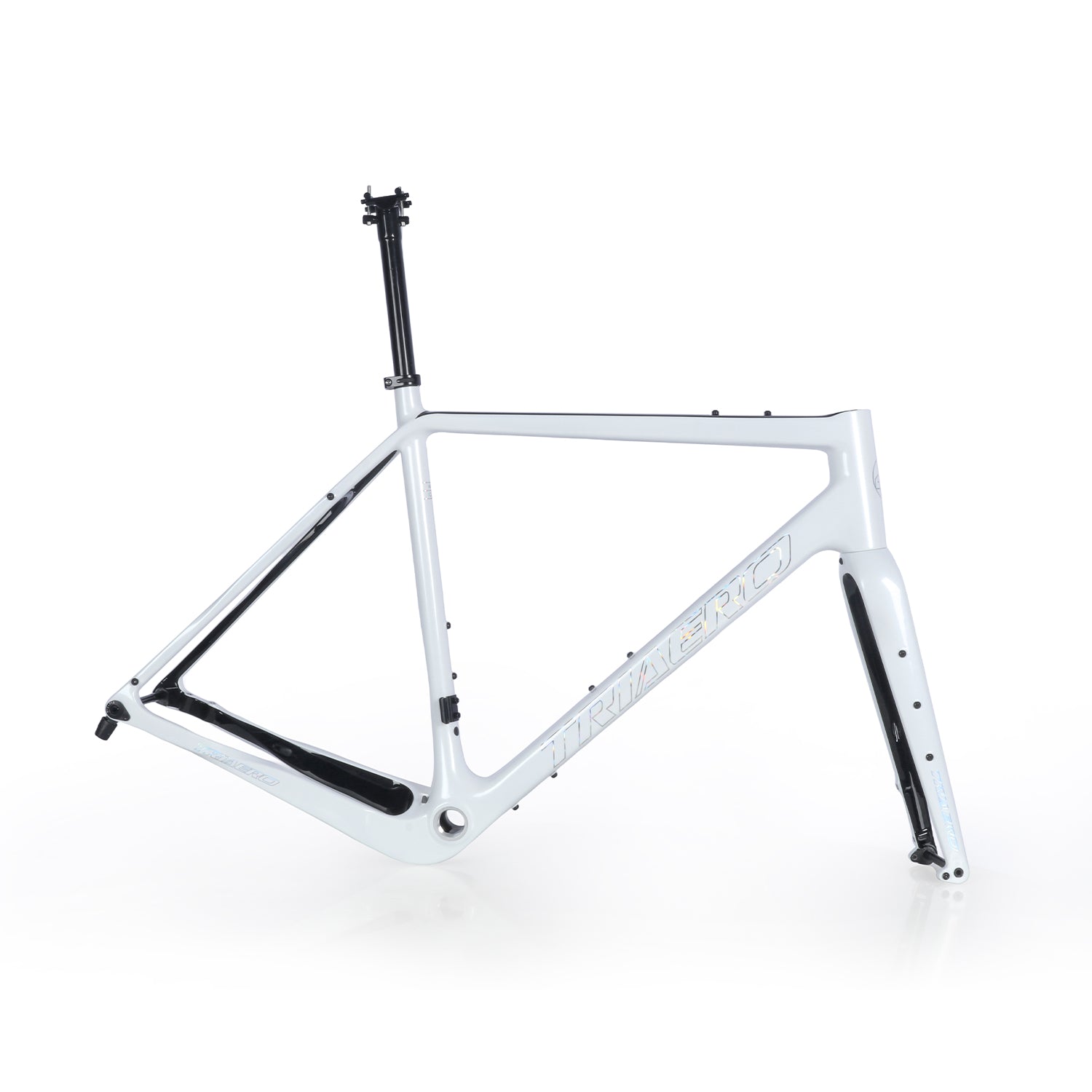

X-Gravel-2 frame

Introduction:

The X-gravel is an improved version of the popular X-gravel-1, retaining the original design and materials and adding additional optimizations. Notable improvements include internal cable routing to reduce drag, improved performance and a sleeker aesthetic. X-gravel seamlessly combines contemporary style with the popularity of the original design. Backed by X-gravel-1's proven success in sales and customer validation, X-gravel offers a reliable and versatile choice that meets both practical and aesthetic preferences in the market.

Specification:

Type: New gravel frame disc
Frame: X-Gravel 2 (flat mount)
Seat post: 400 x 27.2 mm
Material: Toray T700 Carbon
Weave : UDM/Painting
Weight: Fork: 570 g (UDM)
Frame painting: 49cm-1260+-20g, 52cm-1290+-20g, 54cm-13200+-20g, 56cm-1350+-20g, 58cm-1380+-20g
UD Matt: 49cm-1185+-20g, 52cm-1220+-20g, 54cm-1265+-20g, 56cm-1300+-20g, 58cm-1330+-20g
Head tube: 1-1/2", 1-1/2"
BB: BSA
Available size: 49/ 52/ 54/ 56/ 58 cm
Maximum tire size: MTB-29er x 1.95 inch Road Disc-700C x 45 mm
Cable connector: Internal cable routing
Achse: 100*12mm/142*12mm
Rotor size: front: 140 mm; Rear: 140mm
Included in delivery: frame+fork+seat post+headset+thru axles+hanger

Characteristics:

Increased tire clearance for improved comfort

The This design guarantees a light, responsive riding experience with excellent control on various terrains.

Flexible mounting options

Equipped with numerous attachment points for bottle cages, bags and mudguards, the X-gravel is ideally equipped for extended tours, bikepacking adventures or the daily commute and offers unsurpassed versatility.

Innovative gravel-specific geometry

With an innovative, gravel-specific geometry, the X-gravel features an extended chainstay length and precisely adjusted trail values ​​that improve the bike's handling and stability. This design guarantees a seamless ride over uneven terrain, exceptional control on descents and efficient power transfer when climbing. The geometric design of this frame makes it clear that it is particularly suitable for long-distance journeys and offers a high level of comfort.

Slim internal cable management and sealed axle design

The sealed thru-axle design not only achieves a sleek appearance for improved aerodynamic performance, but also maintains a clean, aerodynamic profile. Complemented by internal cable routing, this feature not only enhances the bike's aesthetics, but also protects the cables from the elements, ensuring smooth operation and reducing maintenance requirements.

BSA bottom bracket

The BSA threaded bottom bracket not only adds to the overall strength of the bike, but also simplifies maintenance, allowing for easy installation and removal. Additionally, the BSA standard ensures compatibility with a wide range of cranks and components, giving cyclists flexibility when upgrading or replacing parts. The availability of replacement parts for BSA bottom brackets and carbon frames with this design is widespread, facilitating convenient maintenance.

ICAN X-Gravel frameset included

HBG02 handlebar included

X-Gravel-Geometrie

height reference table

The video on how to assemble the X-Gravel complete bike
