AERO 40Ⅱ 1180g

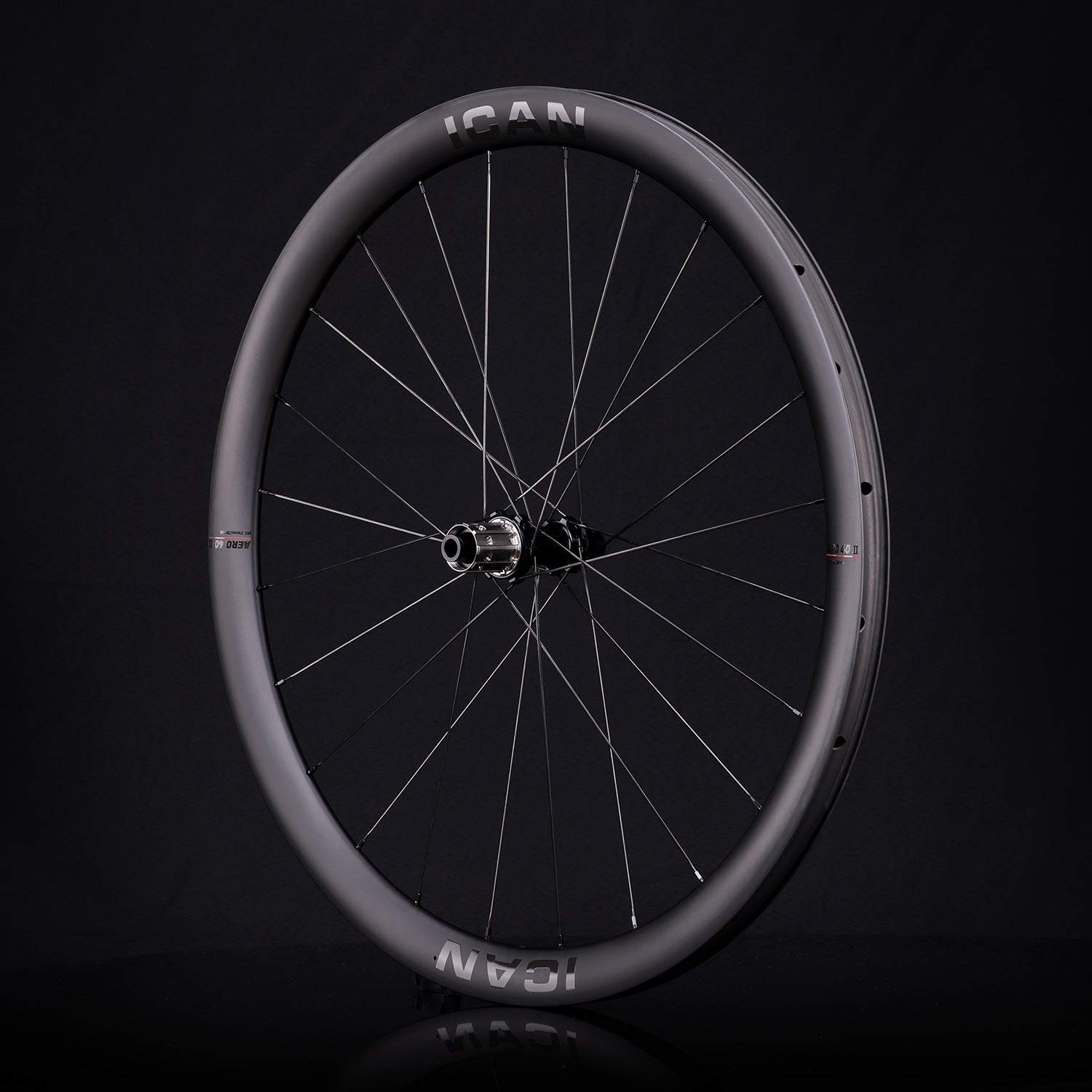

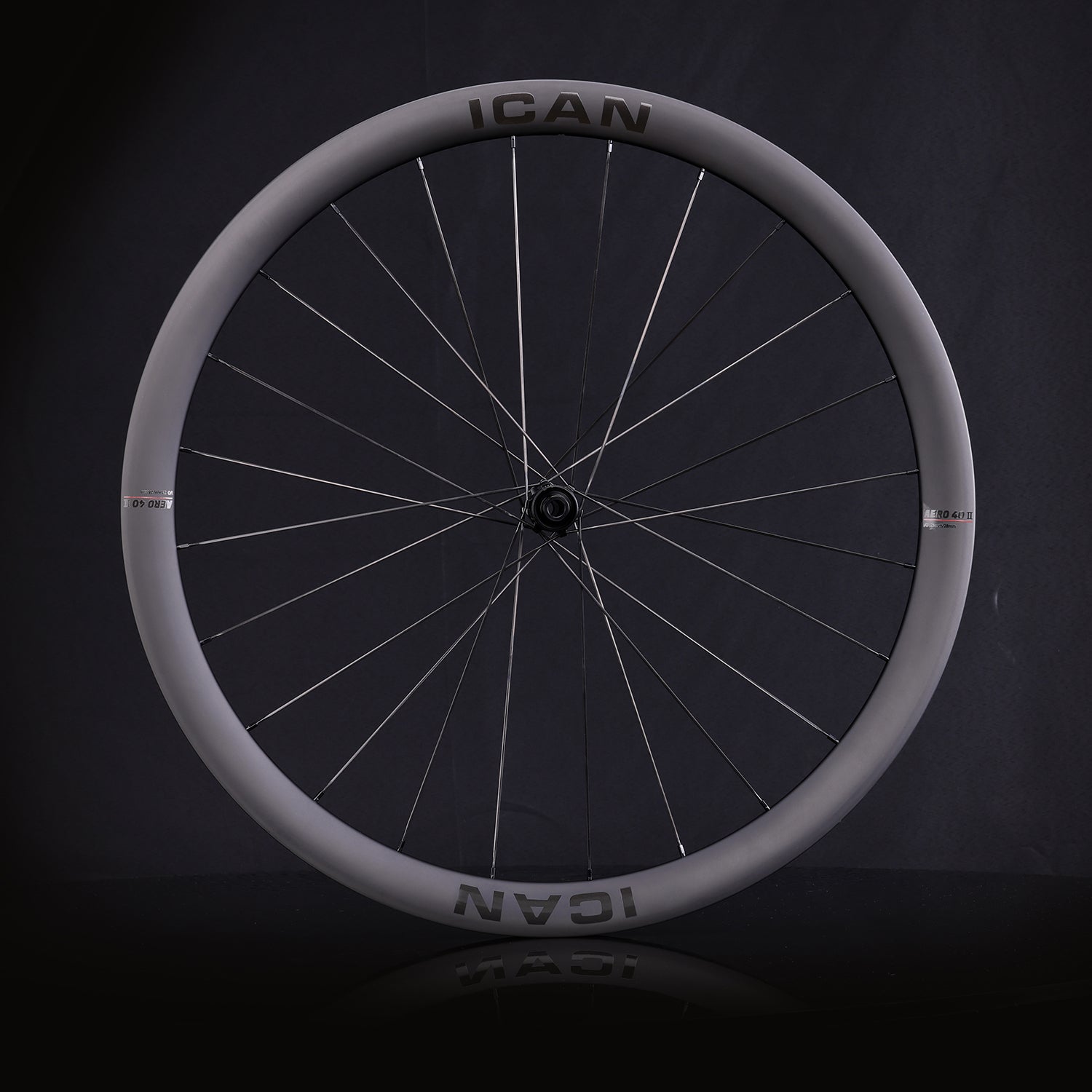

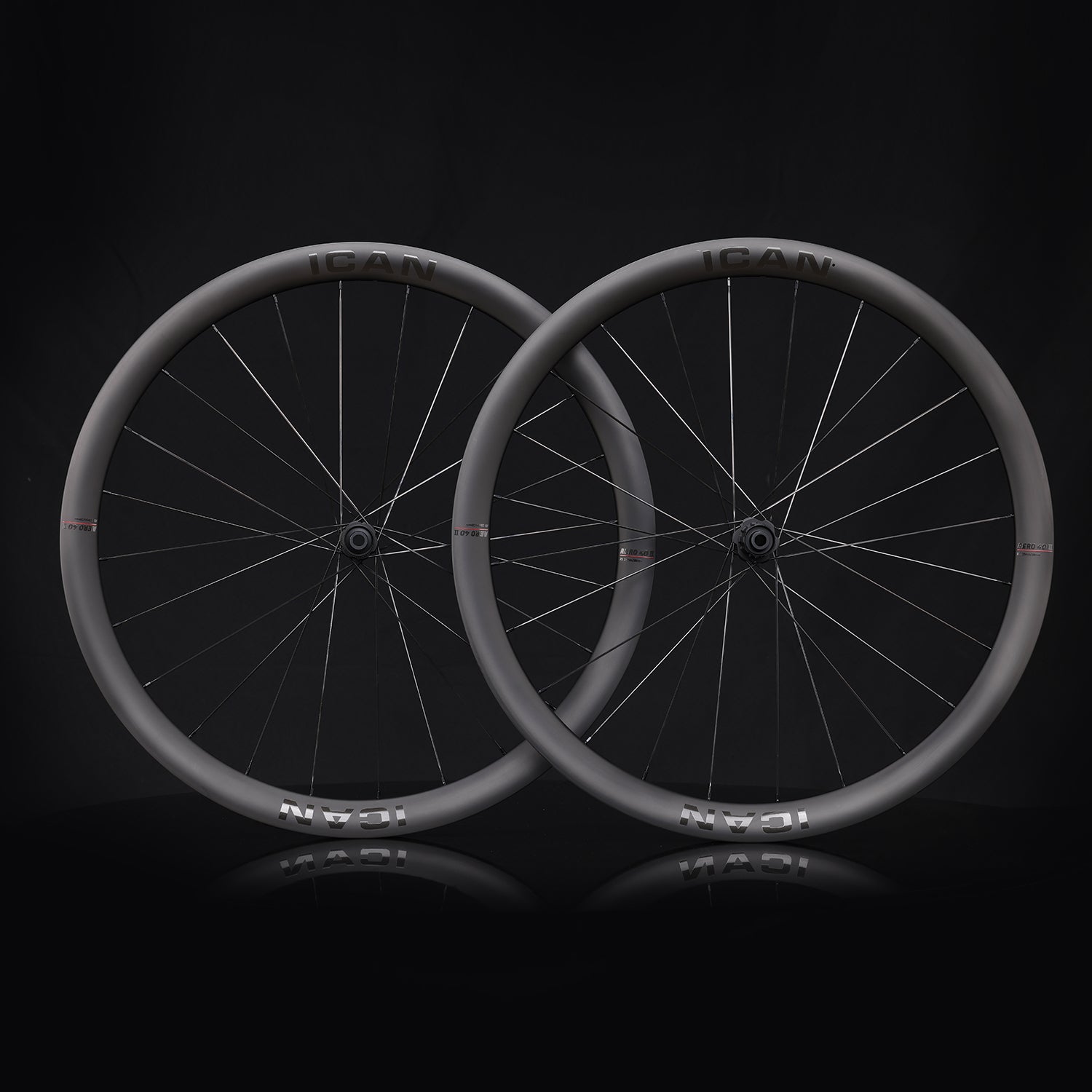

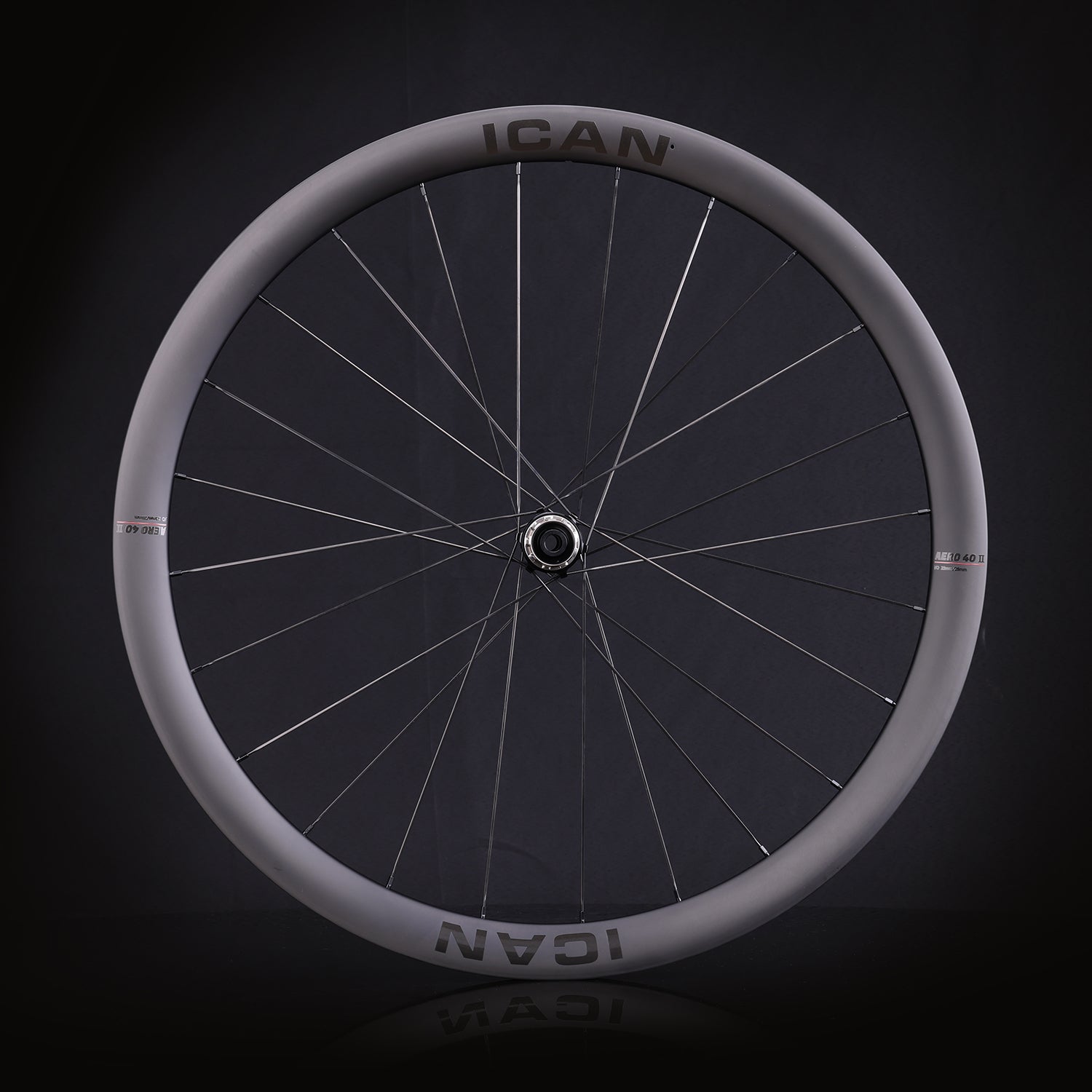

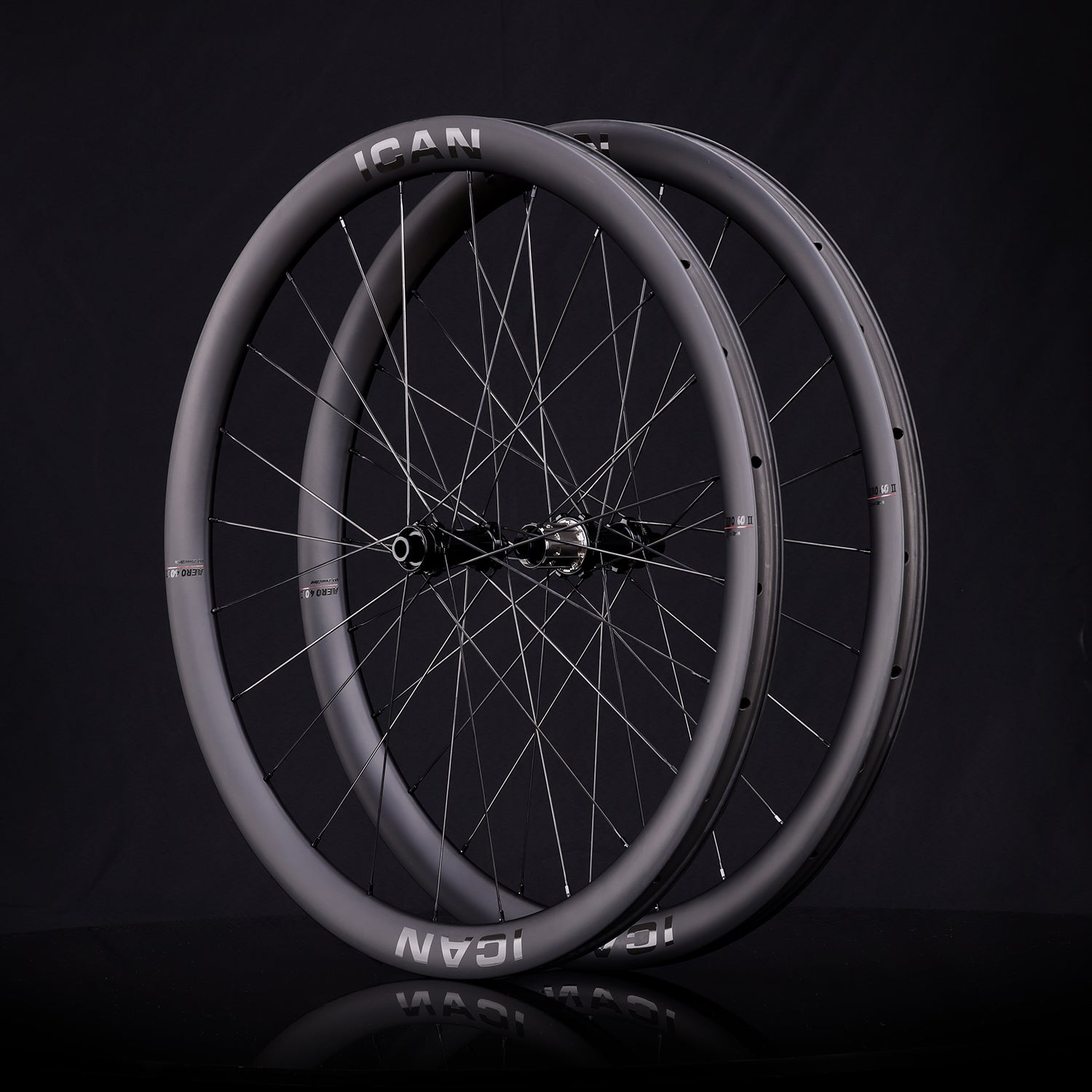

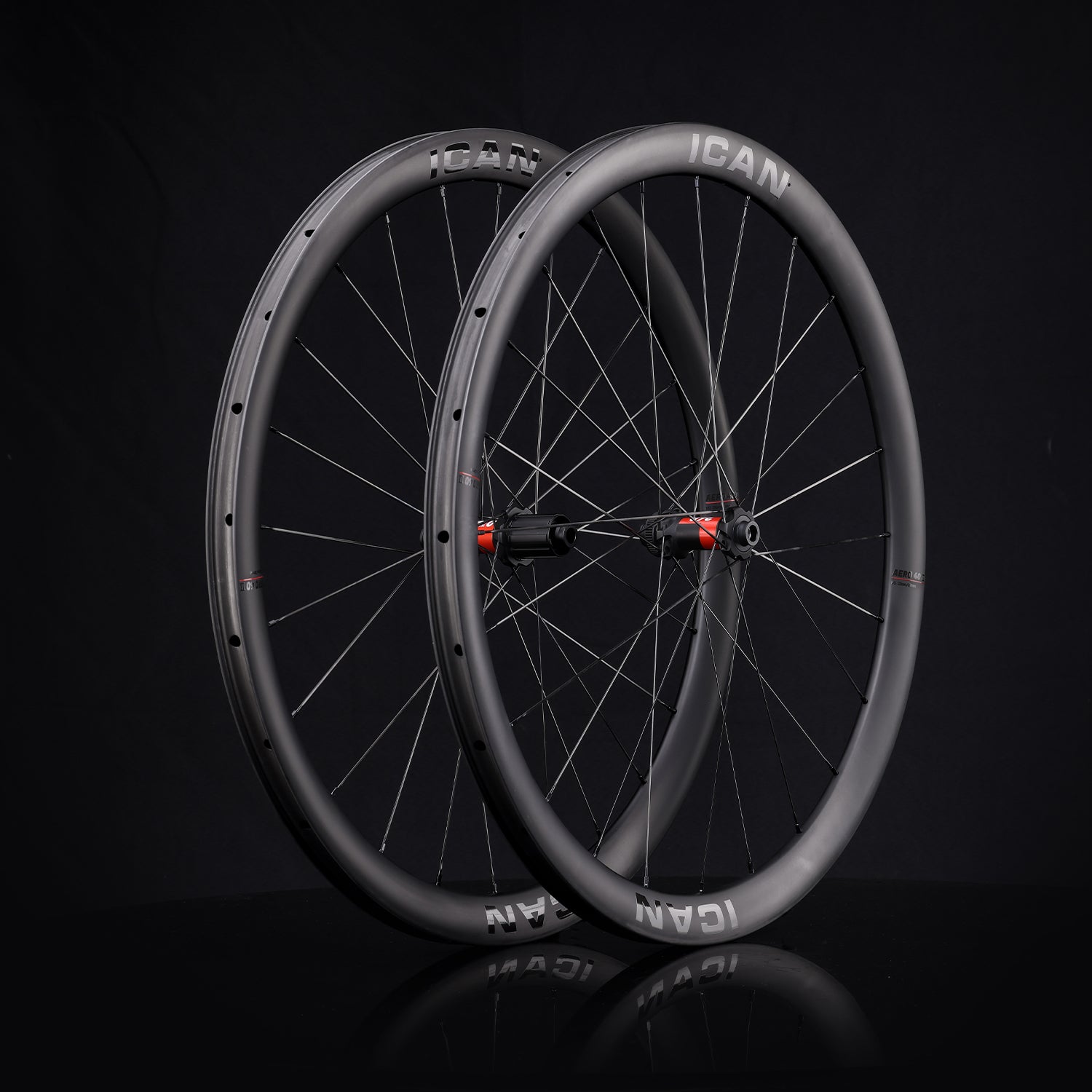

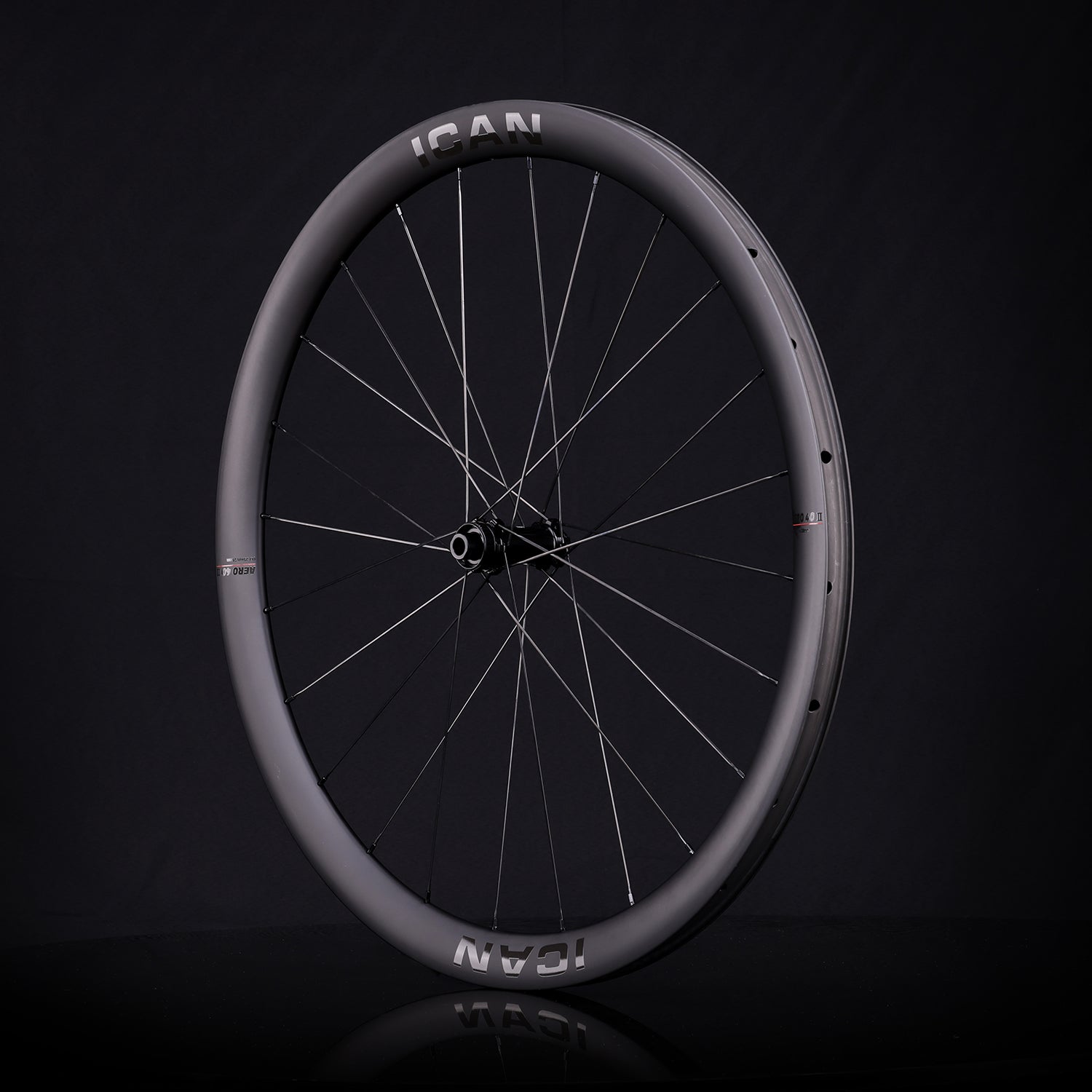

ICAN AERO 40Ⅱ Disc Carbon Wheelset – Designed for climbers and lively riders, this ultra-lightweight wheelset offers explosive acceleration, efficient power transfer, and confident control both uphill and downhill. Thanks to optimized carbon layup, 23 mm internal width, improved D91 hubs with 45T star ratchet, Sapim CX-Ray spokes, and tubeless-compatible design, it guarantees a responsive and stable riding experience on various terrains.

Specifications

1. Enhanced Ultra-Lightweight Performance

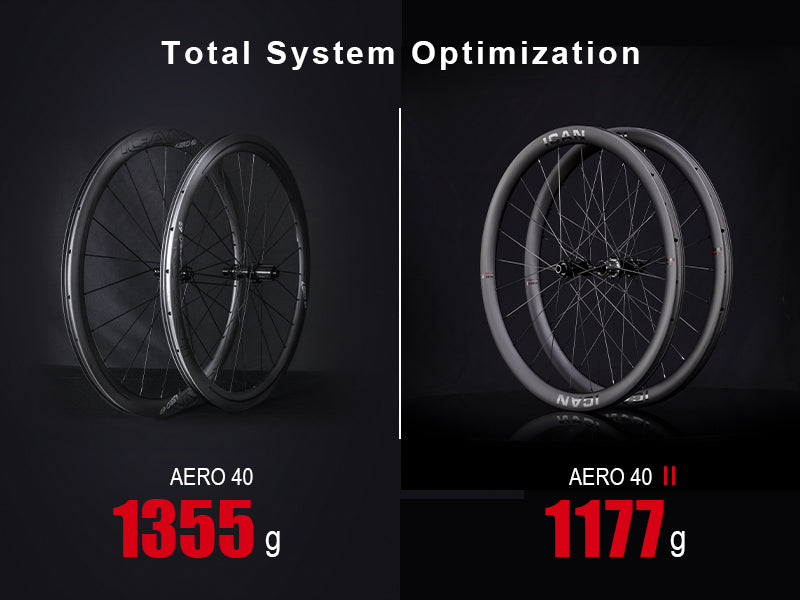

Weighing only 1177 g per pair, the ICAN AERO 40Ⅱ Disc impresses with an optimized carbon layup that saves 178 g compared to the previous version – without compromising stiffness or durability. One of the lightest aero disc wheels on the market, developed for racers and climbing specialists seeking maximum efficiency.

2. Optimized U/V Rim Profile for Aerodynamics and Control

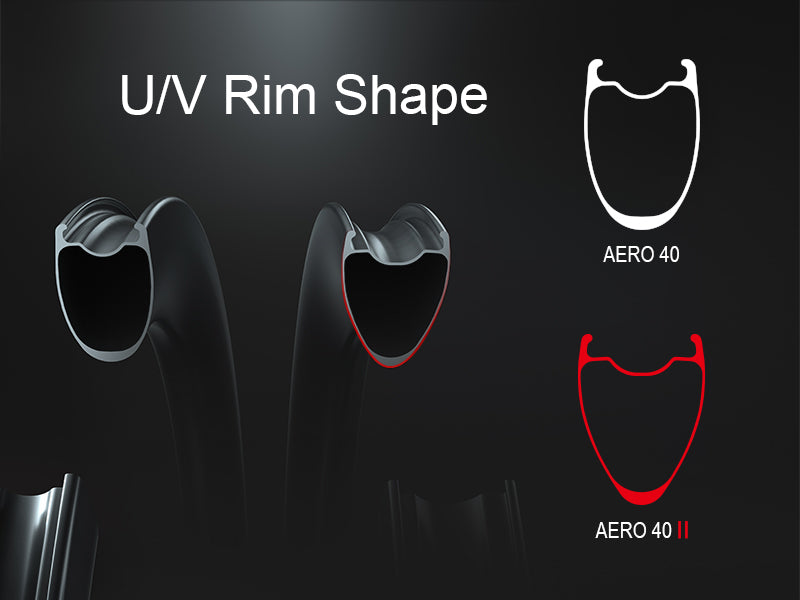

The revised U/V rim profile combines the aerodynamic stability of a U-shape with the streamlined efficiency of a V-shape. The result: reduced air resistance and improved performance in crosswinds. At the same time, the design increases lateral stiffness for more efficient power transfer during sprints and climbs. The smooth transition between tire and rim also provides better handling, more comfort, and high versatility on various surfaces.

3. Expanded 23 mm Internal Rim Width

Thanks to the wider 23 mm internal rim, the wheelset is perfect for wider tires (28–32 mm+). This provides more grip, higher riding comfort, and additional stability – ideal for long-distance rides, allroad use, and modern wide-tire setups.

4. Optimized Hub Design for Maximum Performance

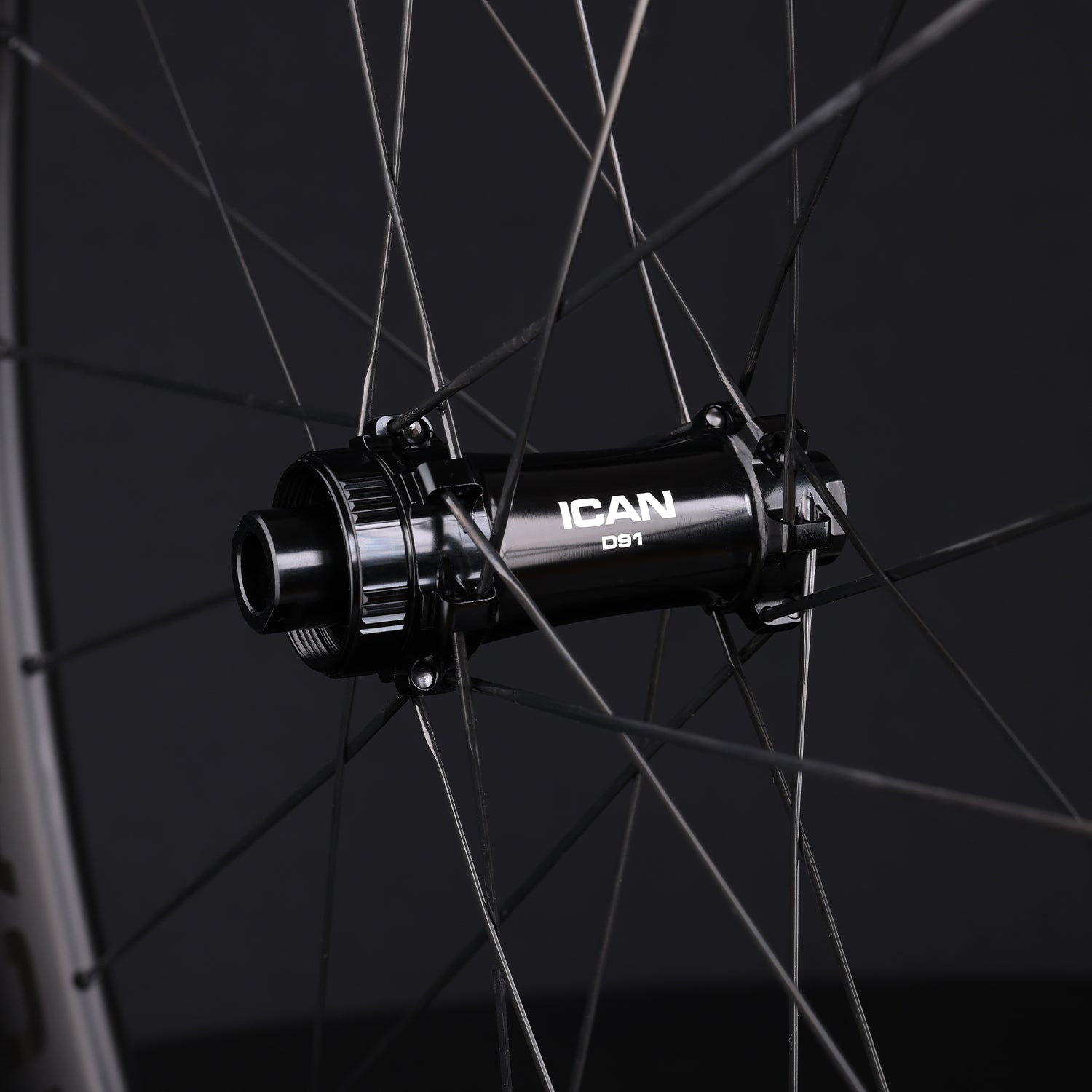

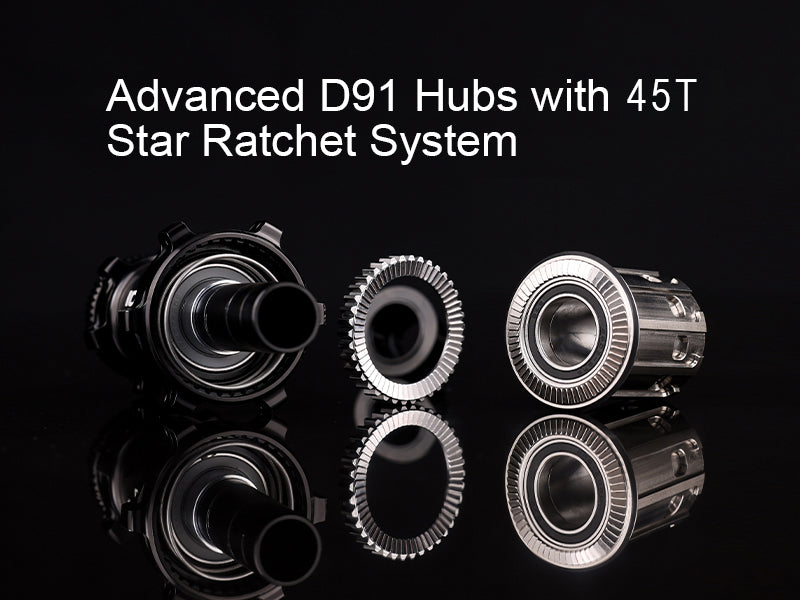

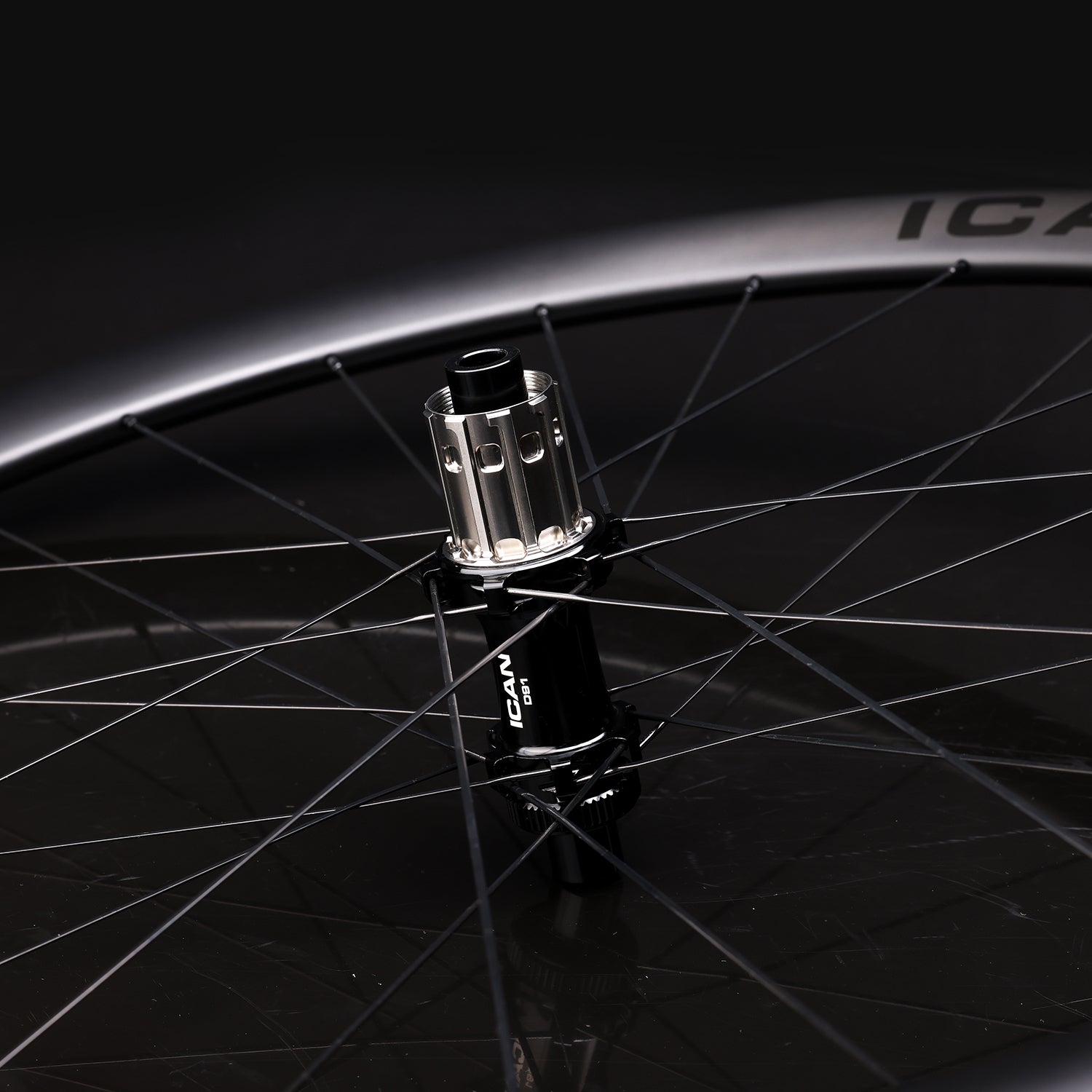

The AERO 40 II now features the new ICAN D91 hub, replacing the previous D01 model. The popular 45T star ratchet technology enables faster engagement, while high-quality S&S steel bearings ensure even greater durability and exceptionally smooth rotation. Additionally, the freehub body has been intelligently optimized: excess material was removed without affecting cassette compatibility. As a result, the complete hub weighs only 280 g. This clever redesign significantly contributes to a lighter and more efficient wheelset.

5. High-Quality Sapim CX-Ray Spokes

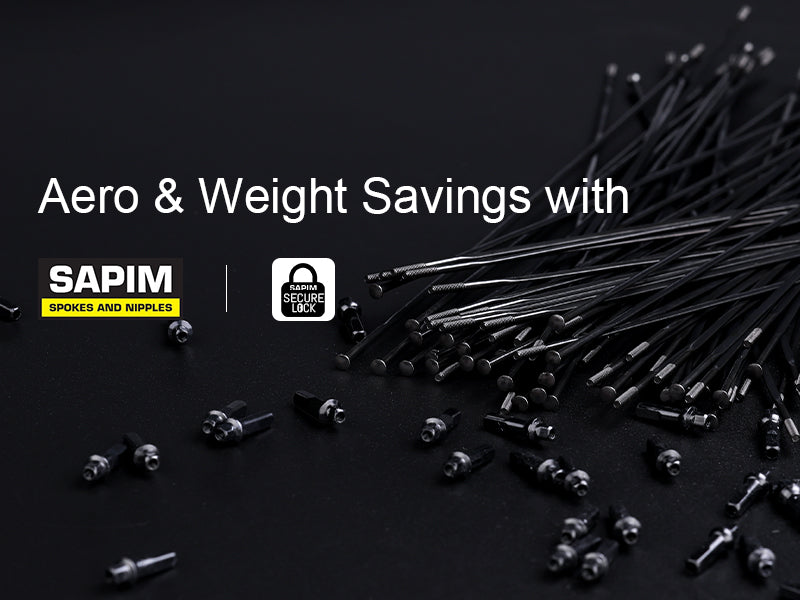

Equipped with Sapim CX-Ray aero spokes and Sapim Secure Lock nipples, the wheelset offers maximum stability, reliable spoke tension, and long-lasting performance – for a smooth, precise, and stable ride on every outing.

Specification：
Rim:

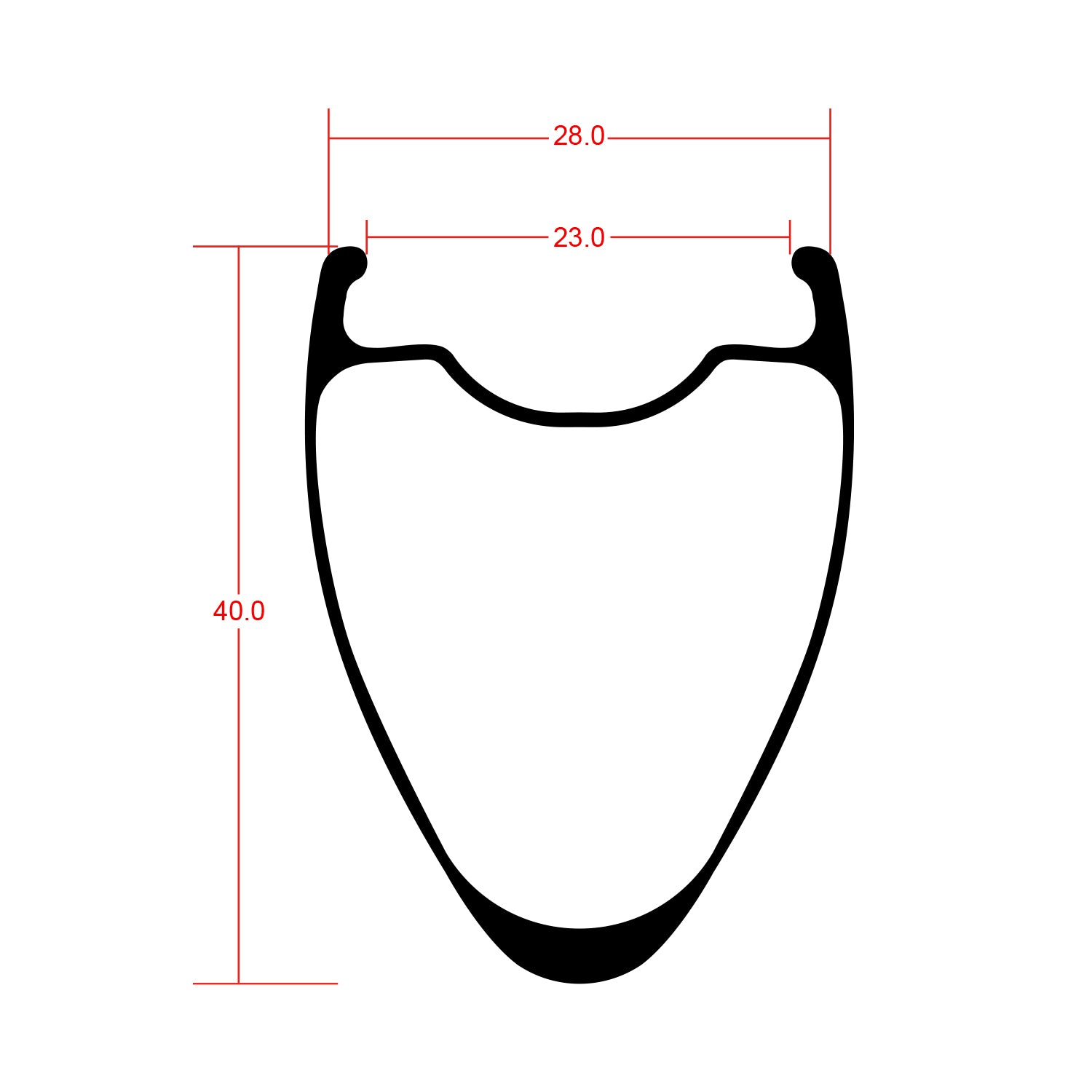

– 700C: 40mm deep, 28mm wide rim;
– Clincher tubeless compatible, hooked rim bed; 23mm internal width to accommodate a variety of tubeless and wired tires.

Spokes:
– Sapim CX-Ray spokes
– For over 30 years, Sapim has produced some of the best spokes on the market for all terrain types.
– Aerodynamic profile for reduced air resistance.
– Rear wheel: 24 spokes, double-cross lacing pattern.
– Front wheel: 24 spokes, double-cross lacing pattern.

Hubs:
– ICAN D91 hubs - equipped with a 45T ratchet system / DT240EXP hubs - equipped with a 36-ratchet system
– Comes with Shimano 11/12-speed / Sram 10/11-speed freehub body.
– SRAM XDR driver available on request.
– Compatible with F: 12×100 R: 12×142 thru-axles.
– Supports Center-Lock disc brake rotors.

Weight: AERO 40Ⅱ Disc (ICAN-D91 hubs)
– Total: 1178±20g
– Front: 550±10g Rear: 628±10g

Weight: AERO 40Ⅱ Disc (DT240EXP hubs)
– Total: 1208±20g
– Front: 556±10g Rear: 651±10g

Other:
– Rider weight limit: 105 kg
– Warranty: 2 years
– Included: 1 set of skewers
– Package size: 81.5 cm x 17 cm x 65.5 cm
