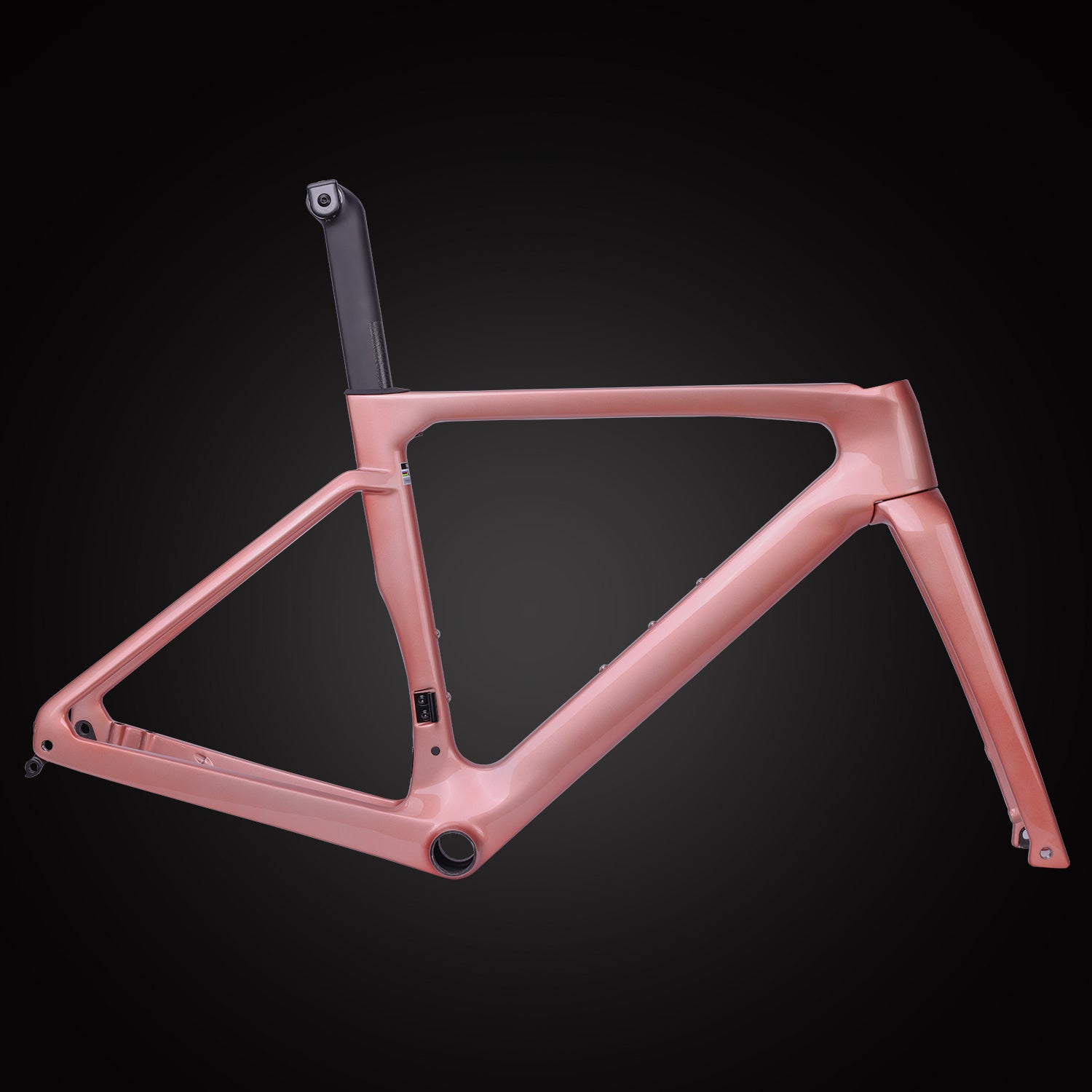

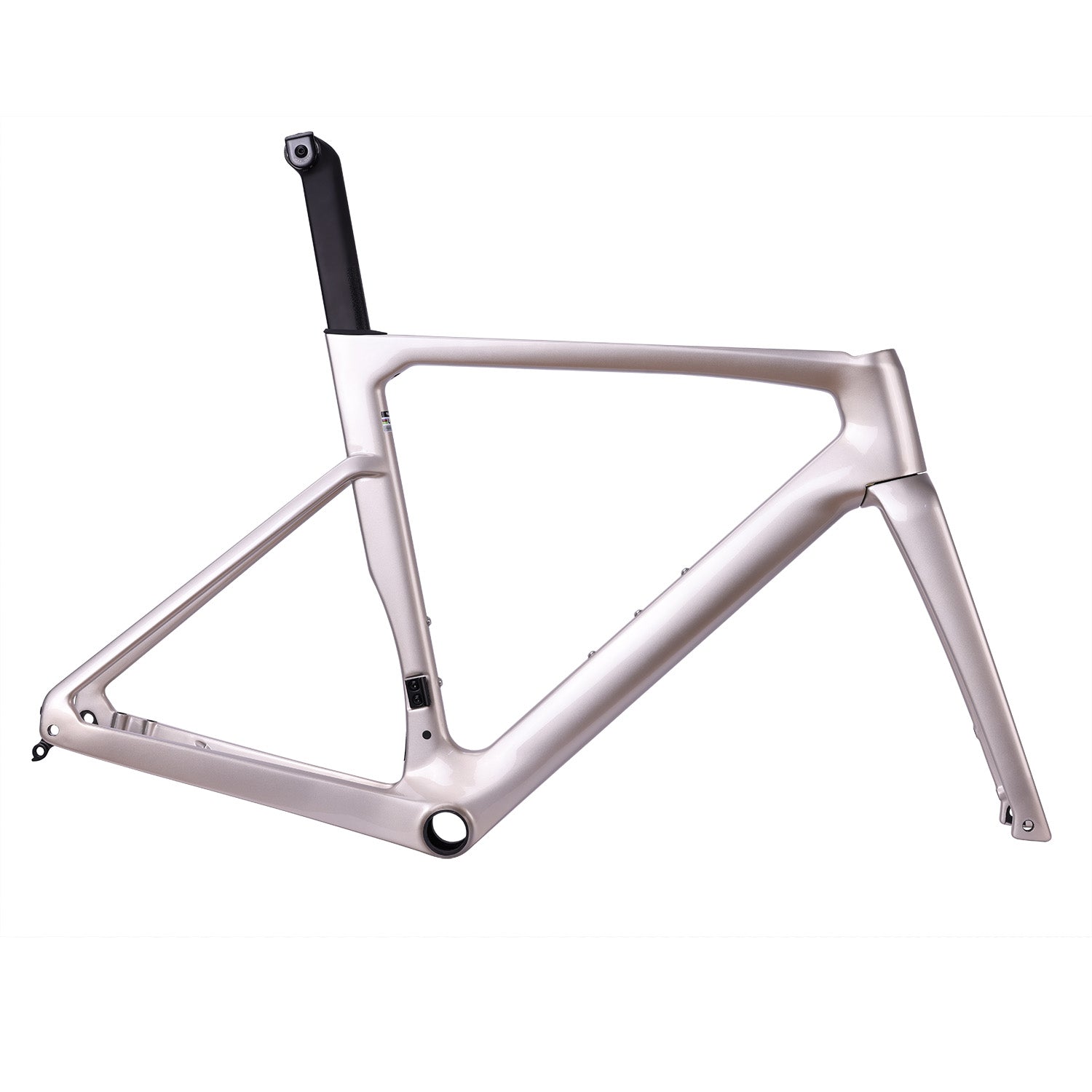

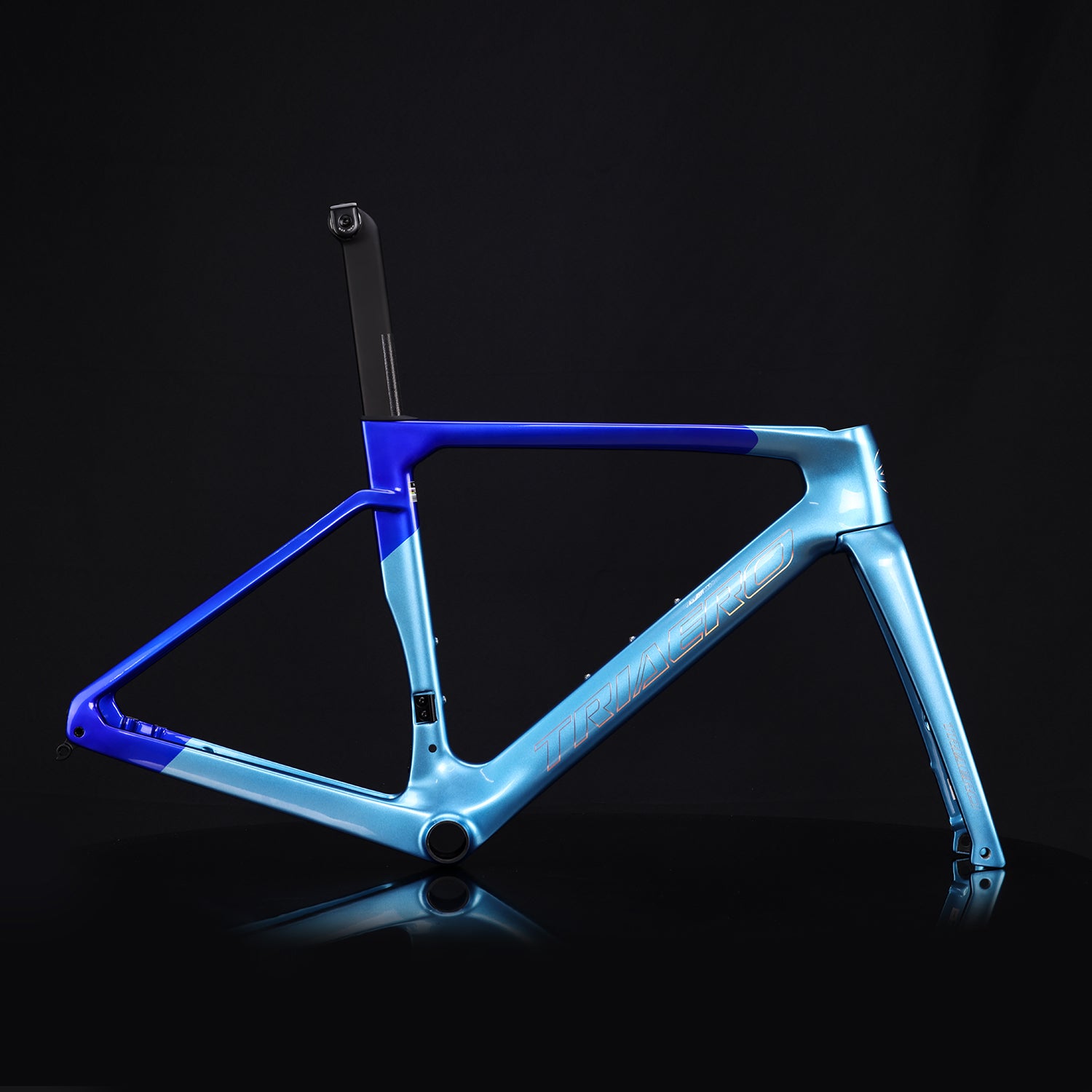

A9 Carbon Disc Road Bike Frameset

introduction

The A9 frame is precision crafted and utilizes advanced carbon fiber technology. It embodies the perfect balance of lightweight construction and exceptional strength. Its aerodynamic design increases speed and efficiency, making it the ideal choice for competitive racing or demanding road cycling. The geometry of the frame has been carefully designed to provide optimal comfort, handling and power transfer to ensure a superior riding experience.

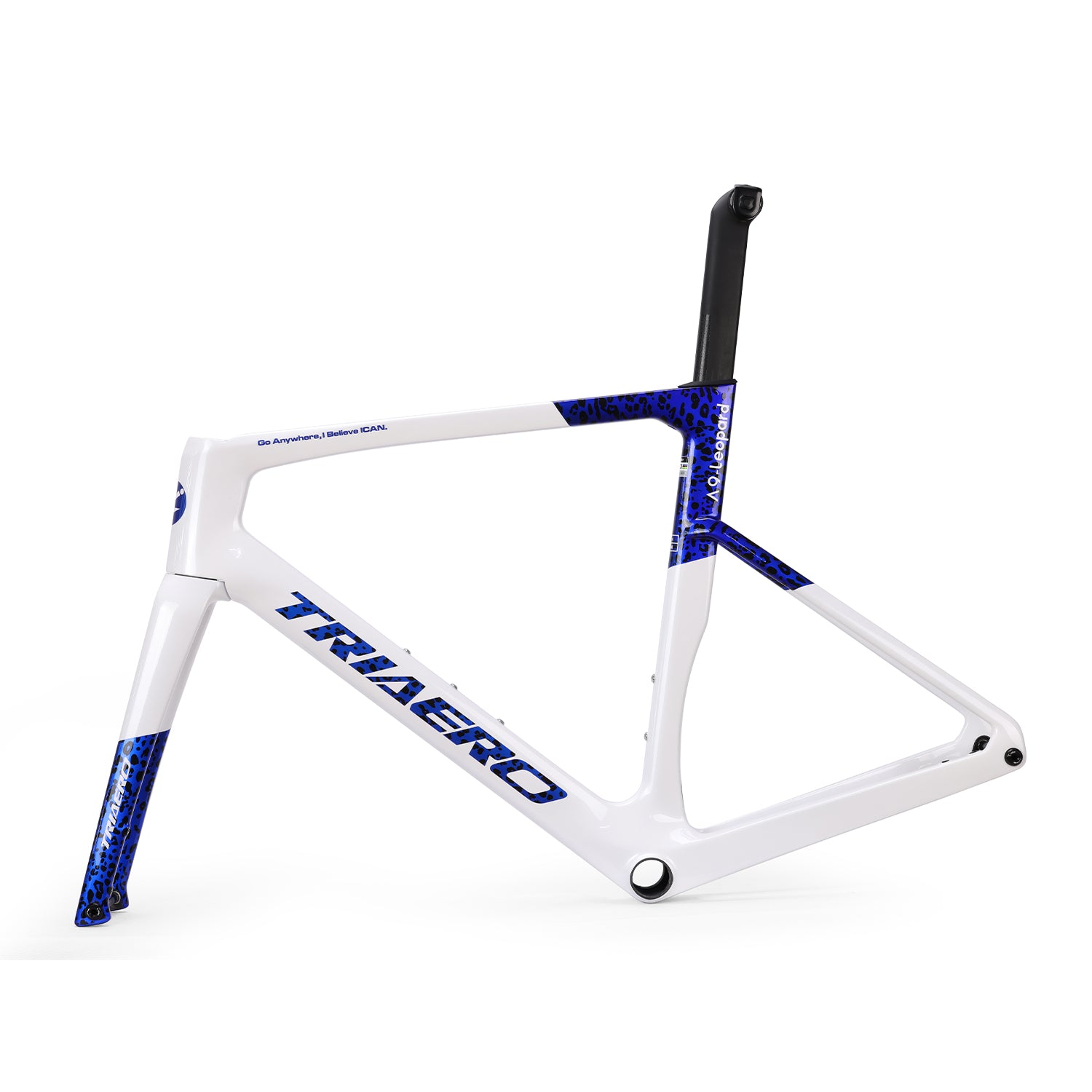

The A9 frame can be painted according to your requirements and the paint design can be designed directly on our 3D paint design website , just give it a try.

3D-Lackdesign-Website: http://icancustompaint.com

specification
Type: Carbon road disc frame
Tires : 700C*28C
Material: Carbon fiber T800 & T700
Finished: UD Matt/Glossy/Painting
Rotors: Flat mount, front 160 mm, rear 140 mm
thru axle
Front: 100 x 12 mm
Rear: 142x12mm
Weight :
Frame: 1090 g,
front fork: 410g
Seat post: 320g (52cm without paint)
Head tube: 1-1/2'',1-1/2''
Size: 46/49/52/54/56/58cm
Stem: 90/100/120mm (angle 5°, fixed)
Please note the desired size when purchasing.
Links :
400mm/420mm/440mm
Please note the desired size when purchasing.
Cable: All internal cables
BB: BB86

Characteristics:

Aerodynamisches Design:

The ICAN A9 frame features an aerodynamic design carefully engineered to minimize drag while optimizing airflow. This leads to a significant increase in overall speed. This feature positions it as the ultimate choice for cyclists seeking increased performance, ensuring a seamless marriage of cutting-edge aerodynamics and superior speed capabilities.

Lightweight carbon fiber construction T800 & T700:

With a focus on minimizing weight without compromising strength, the A9 frame is constructed from advanced materials, resulting in a lightweight construction that improves agility and responsiveness during rides.

Internal cable routing:

The key benefits of a complete internal cable routing system include improved aerodynamics, reduced drag and an overall sleek and clean appearance. By concealing the cables within the frame, the bike not only cuts through the wind more efficiently, but also presents a polished and streamlined aesthetic appearance. Additionally, internal routing minimizes exposure to external elements, contributing to improved durability and reduced maintenance requirements. This design choice not only prioritizes performance, but also highlights the overall aesthetic of the ICAN A9 road bike, making it an ideal choice for cyclists who value both form and function.

Multifunctional compatibility:

The ICAN A9 frame was designed with versatility in mind, offering compatibility with both mechanical and electronic groupsets. This feature allows cyclists to customize their riding experience based on personal preferences and specific cycling regulations.

Stiff and equipped with BB86 bottom bracket:

The rigidity of the frame ensures efficient power transfer from the rider to the wheels, resulting in a more responsive and energy efficient cycling experience. The BB86 bottom bracket standard offers several advantages in the field of cycling. This configuration, characterized by an 86.5mm wide shell with bearings pressed directly into it, improves overall stiffness and power transfer in the bike frame. The wider base of the BB86 provides a robust platform for the bottom bracket, reducing flexibility and ensuring efficient energy transfer from the rider to the drivetrain.

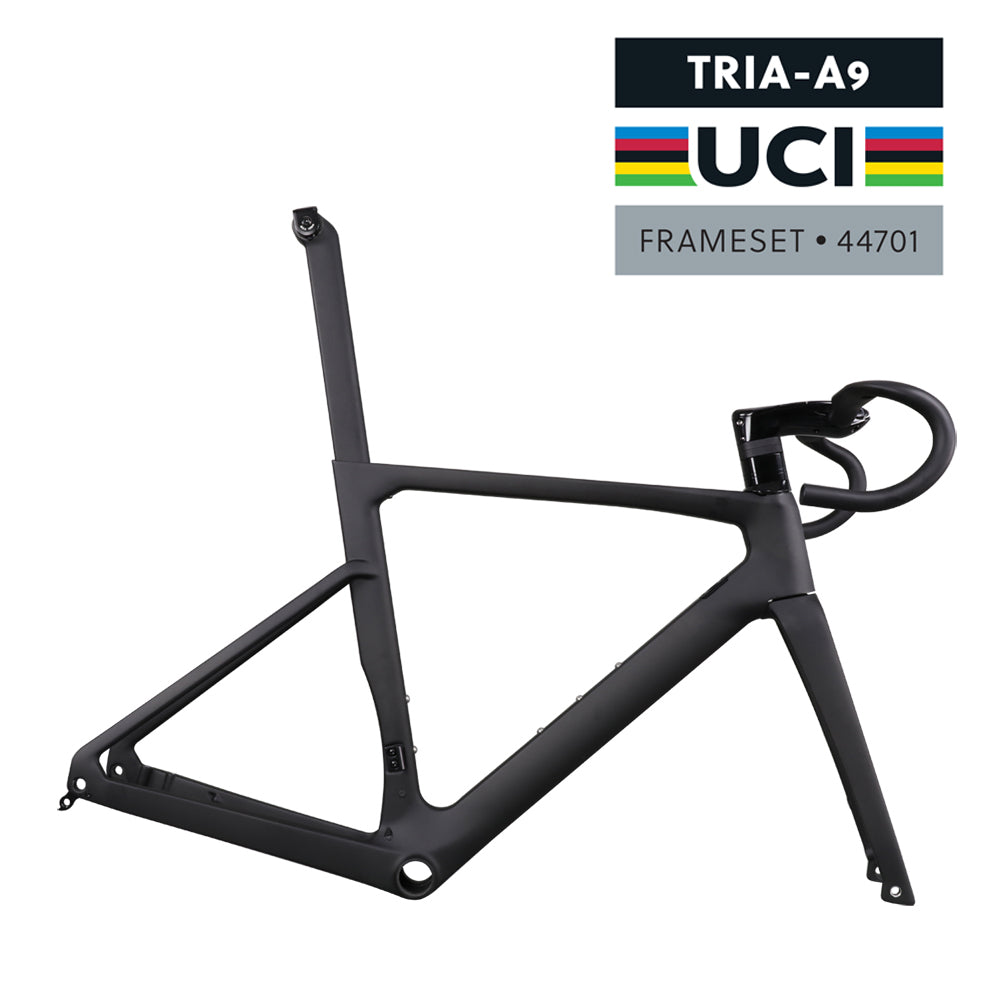

UCI certification:

The ICAN A9 frame is certified and approved by the Union Cycliste Internationale (UCI), which regulates international cycling. Only products that pass rigorous testing receive this certification and are allowed to be used in UCI-sanctioned road races.

Geometry
